Water Bestand 48 Kern 500m de Optische Kabel van de Spanwijdteofc ADSS Vezel
Contact Persoon : Philip
Telefoonnummer : +8613422342788
Whatsapp : +8613422342788
Min. bestelaantal : | 1000m | Verpakking Details : | Houten trommel |
---|---|---|---|
Levertijd : | 2-4day | Betalingscondities : | Western Union, MoneyGram, T/T, L/C |
Levering vermogen : | 100km per vandaag |
Plaats van herkomst: | CHINA | Merknaam: | jiqian |
---|---|---|---|
Certificering: | ISO | Modelnummer: | ADSS |
Gedetailleerde informatie |
|||
Vezeltype: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Beschikbaar |
---|---|---|---|
Toepassing: | Antenne/Buis | Aantal Leiders: | 12 24 48 96 |
structuur: | Vastgelopen Losse Buis | Werkende Temperatuur: | -40 ~ +60 C |
Centraal Sterktelid: | FRP | Jasje: | PE |
Hoog licht: | 120mm de Vezel Optische Kabel van de Spanwijdtelengte ADSS,de Vezel Optische Kabel van 24Core ADSS,120mm de optische kabel van de Spanwijdtelengte adss |
Productomschrijving

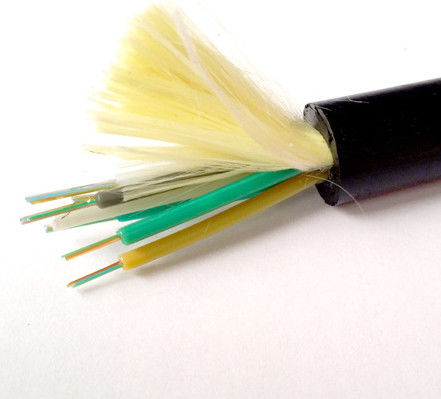

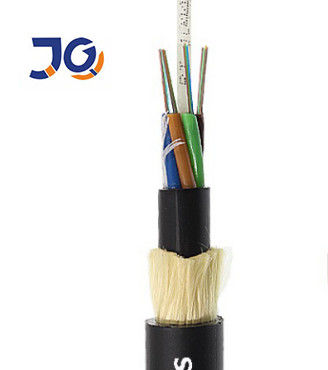

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Applications:
Widely used in self support aerial / overhead.
Features:
Can be installed without shutting off the power.
Excellent mechanical performance.
Good performance of tensile strength and temperature.
Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
and backprops.
Long life span time over 30 years.
Cable Parametres:
Model No. | ADSS |
Fiber count | 2-144 hilos |
Fiber type | SM G652D |
Central Strangth member | FRP |
Loose tube | PBT |
Type of filling compound | Jelly |
Water-blocking system | Water blocking tape |
Strength member | Kevlar yarn |
Inner sheath | PE |
Outer sheath | PE/AT |
Applicantion | Overhead;Ariel for telecommunication |
Optical Fiber Performance
Fiber Type | G.652D,125.0+-1.0μm |
Mode Field Diameter | 9.2+-0.2μm at 1310 nm |
Cladding Diameter | 125+-1μm |
Cladding Non-Circularity | <=1% |
Coating Diameter | 245+-10μm |
Attenuation Coefficient | <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm |
Chromatic Dispersion | <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm |
Zero Disperson Wavelength | 1300-1322nm |
PMD Coefficient | <=0.2ps/√km |
Features:
Can be installed without shutting off the power.
Excellent mechanical performance.
Good performance of tensile strength and temperature.
Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
and backprops.
Long life span time over 30 years.
