GYFTY Fiber Optic Cable 24 48 Core Single Mode Outdoor Duct Direct Burial Underground Optical Cable

10 km
MOQ
GYFTY Fiber Optic Cable 24 48 Core Single Mode Outdoor Duct Direct Burial Underground Optical Cable
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Vezel merk: YOFC/Fiber Home/Corning/Fujikura
Kleur: Zwarte of sinaasappel of Aangepast
Jas metarieel: PE, HDPE/LSZH/AT
Krachtlid: FRP (indien nodig met PE) Glasgarens
Vezeltelling: 4-288 cores
Installatie: overhead & duct & direct begraven
Trommel lengte: 5 km of aangepast
Staaldiameter: 0.8 mm * 2
Markeren:

24 core duct fiber optic cable

,

48 core single mode optical cable

,

direct burial underground fiber cable
Basis informatie
Plaats van herkomst: China
Merknaam: JQ/ Customized
Certificering: ISO9001, FCC, ROHS/CCC/FCC
Modelnummer: Gyfty-24F
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Houten trommel
Levertijd: 8 dagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 300KM per dag
Productomschrijving

GYFTY Outdoor Fiber Optic Cable 24 Core G652D Non-Metallic Self Supporting Cable



Product Features

  • Non-metallic structure for strong anti-electromagnetic interference

  • High-strength loose tube with water-blocking protection

  • Lightweight and small diameter for easy installation

  • UV-resistant PE sheath for reliable outdoor durability

Application Scenarios

  • Power transmission and high-voltage environments

  • Areas with strong electromagnetic interference

  • Overhead telecom and backbone networks

  • Long-distance outdoor communication systems

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















 1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500

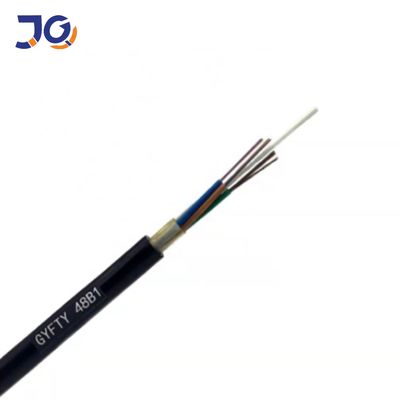

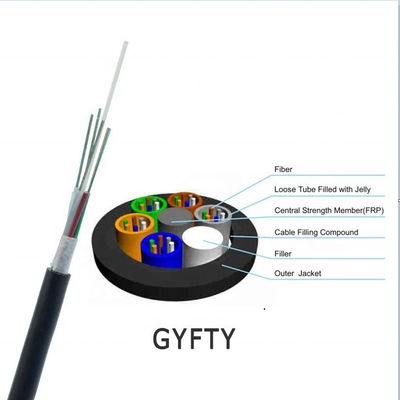

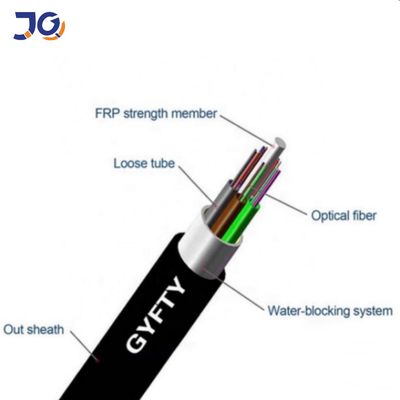

Detail product pictures

GYFTY Fiber Optic Cable 24 48 Core Single Mode Outdoor Duct Direct Burial Underground Optical Cable 0



GYFTY Fiber Optic Cable 24 48 Core Single Mode Outdoor Duct Direct Burial Underground Optical Cable 1

FAQ – GYFTY Fiber Optic Cable



Q1: What is GYFTY cable used for?
A: It is used for outdoor telecom networks and power line communication systems.



Q2: What fiber types are available?
A: G652D single-mode and multimode fibers such as OM1, OM2, OM3, and OM4.



Q3: Is it suitable for outdoor use?
A: Yes, it has a UV-resistant PE sheath and waterproof structure.



Q4: Does the cable resist interference?
A: Yes, the non-metallic design provides strong anti-electromagnetic interference.



Q5: Do you support OEM orders?
A: Yes, OEM customization is available.
