ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation

1 km
MOQ
Inquiry for price
Prijs
ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Kabeldiameter: 9.7 mm,10 mm
Kleur jas: Zwart, aangepast
Bedrijfstemperatuur: -40 ℃ ~+70 ℃
Sollicitatie: Overhead/Aerial, Pipe/duct laying
Vezeltelling: 2-144 cores
Opslagtemperatuur: -40℃~+85℃
Buigradius: Statisch: 10D/Dynamic: 20D
Span: 50/100/200/300/400 meter
Markeren:

ADSS fiber optic cable 96 core

,

aerial outdoor ADSS cable

,

single jacket ADSS cable
Basis informatie
Plaats van herkomst: Guangzhou China
Merknaam: JQ/OEM/Customize
Certificering: ROHS/ISO/CE/FCC
Modelnummer: ADSS-4C/12FC/24C/48C/96C/144C
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: houten verpakking of doos
Levertijd: 5-8 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 4500KM per Maand
Productomschrijving

ADSS Fiber Optic Cable All Dielectric Self Supporting Aerial Cable



Product Introduction:
ADSS fiber optic cable features a loose tube stranded structure with FRP strength member, designed for reliable aerial installation without metallic components.



Key Features:

  •  All dielectric design with FRP central strength member
  •  Loose tube structure with water-resistant filling compound
  •  Aramid yarn reinforcement for high tensile strength
  •  PE or AT outer sheath for outdoor protection
  •  Lightweight structure for aerial installation



Applications:

  • Overhead aerial fiber optic installations
  • Power line communication networks
  • Long-distance backbone transmission
  • Telecom and broadband networks

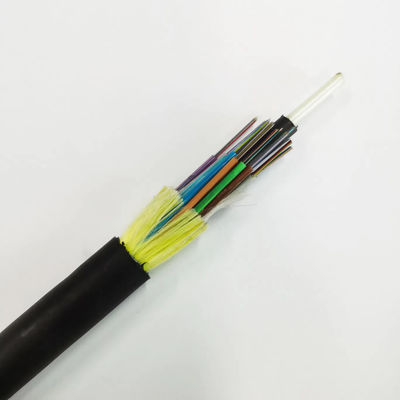

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 0

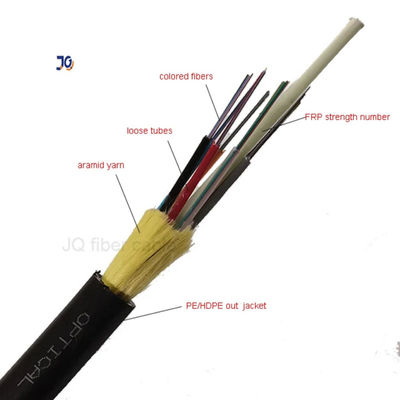

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 1



No. Items Unit Specification
G.652D
1 Mode Field Diameter 13 10nm μm 9.2±0.4
1550nm um 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error um ≤12.0
8 Cable Cutoff Wavelength μm λcc≤1260
9 Attenuation(max.) 1550nm dB/km ≤0.36
1310nm dB/km <0.22

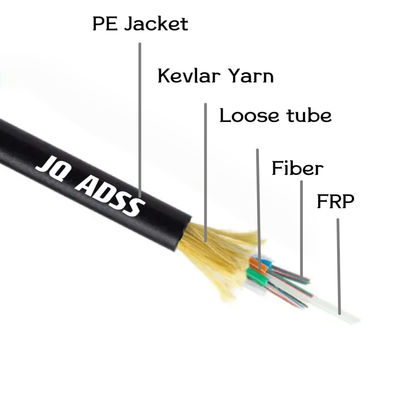

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 2

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 3



ADSS Fiber Optic Cable FAQ



Q1: What is ADSS fiber optic cable used for?
A: It is used for aerial installations on utility poles and power lines.



Q2: What does ADSS stand for?
A: ADSS stands for All Dielectric Self Supporting.



Q3: Does the cable contain metal components?
A: No, it uses a non-metallic FRP strength member.



Q4: What provides tensile strength in the cable?
A: Aramid yarn reinforcement provides high tensile strength.



Q5: What outer sheath options are available?
A: PE or AT outer sheath for different outdoor environments.
