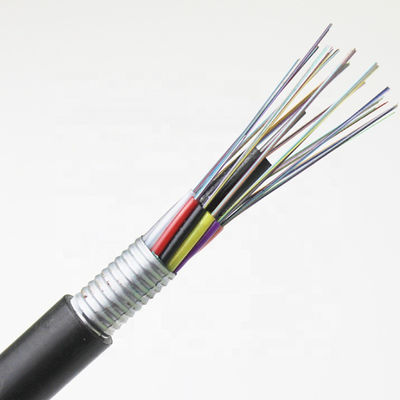

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply

1 km
MOQ
Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Vezeltype: YOFC, Fiber Home, Fujikura, Corning of als verzoek
Kleur: Zwart
Jasje: PE, MDPE, LSZH, PVC, HDPE
Krachtlid: staaldraad/FRP-glasgarens
Vezeltelling: 2-288 cores
Installatie: Antenne & Kanaal
Gepantserd: Stalen tape
Sollicitatie: Netwerkcommunicatie
Markeren:

GYTA Single Mode Fiber Optic Cable

,

12 Core Duct Fiber Optic Cable

,

24 Core Aerial Fiber Optic Cable
Basis informatie
Plaats van herkomst: GUANGZHOU, CHINA
Merknaam: JQ/OEM/Customize
Certificering: ISO9001 ROHS CE-EMC FCC SDOC
Modelnummer: GYTA / GYTS
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Houten trommel
Levertijd: 5-8 werkdagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 4500KM per Maand
Productomschrijving

Outdoor GYTA Single Mode G652D Fiber Optic Cable 12 24 Core for Duct and Aerial Installation


GYTA Fiber Optic Cable Features
  • Stranded loose tube structure for stable fiber protection
  • PSP aluminum tape armor for moisture and crush resistance
  • Water blocking filling compound for reliable watertight performance
  • High strength central member improves mechanical reliability
  • UV resistant PE sheath ensures long term outdoor durability
  • Compatible with single mode fibers
Applications
  • Outdoor duct installation in backbone and access networks
  • Aerial installation for metropolitan and long distance lines
  • Telecom broadband and data transmission systems
  • High reliability communication infrastructure projects



Product Description

Fiber Count
1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name
JQ/OEM
Length
1km 2km 3km 4km 5km
Armored
Steel Tape or Aluminunm Tape



Fiber Count 6 12 24 32 48 72
Cable Diameter (mm) 8.8 8.8 9.0 9.0 9.0 9.2
Tolerance Range (mm) ±0.2, or customized
Cable Weight (kgs/km) 75 75 75 75 75 75
Loose tube Diameter(mm) 1.6 or 2.0



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Mechanical Characteristic

Tensile (N) Long term 600
  Short term 1500
Crush (N/100mm) Long term 300
  Short term 1000
Min. Bending radius (D=Cable diameter) Dynamic 20xD
  Static 10xD
Temperature Range (℃) -20~+70



Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 0

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 1



Application

Suitable for external application in duct and aerial

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 2

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 3

FAQ


Q1: Is this GYTA cable compatible with single mode fibers?
A: Yes, it supports G652D single mode fibers.

Q2: What laying methods are suitable for this cable?
A: It works for both duct and aerial installation.

Q3: Does it offer moisture and crush protection?
A: Yes, the PSP aluminum armor provides excellent protection.

Q4: What is the MOQ for sample orders?
A: 1pc sample is available for checking.

Q5: Can you print custom brand logos on the cable?
A: Yes, we can customize brand information on the jacket.
