Thuis /Producten/Openluchtvezel Optische Kabel/GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom

1 kilometer
MOQ
Inquiry for price
Prijs
GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Type: glasvezelkabel voor buiten
Plaats van herkomst: Guangdong, China
Vezeltype: G652d enkele modus of als uw verzoek
Vezeltelling: 2-144 cores
Buis: Meervoudig losse buis
Centrale krachtlid: staaldraad
Buitenmantel: PE of als uw verzoek
Sollicitatie: Lucht, overhead/ directe begrafenis
Markeren:

GYTA armored fiber optic cable

,

outdoor telecom fiber cable

,

loose tube fiber cable 144 core
Basis informatie
Plaats van herkomst: Guangdong, China
Merknaam: JQ or OEM/Customize
Certificering: CE/ISO9001/RoHS/FCC
Modelnummer: Gyta 12core/24core/48core
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Houten trommel of aangepast
Levertijd: 2-5 dagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 8000 kilometer per maand
Productomschrijving

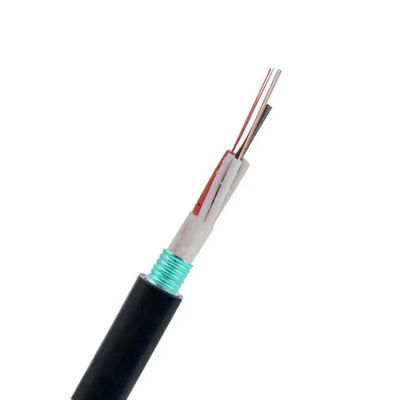

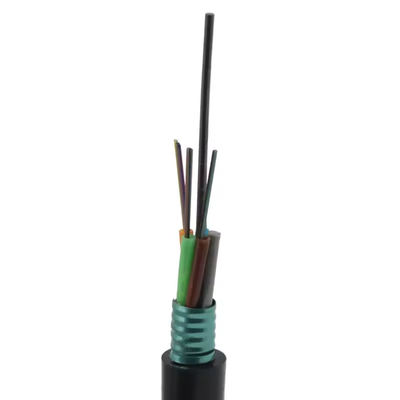

GYTA Armored Outdoor Fiber Optic Cable Aluminum Tape Moisture Proof for Aerial and Duct Installation



Product Introduction

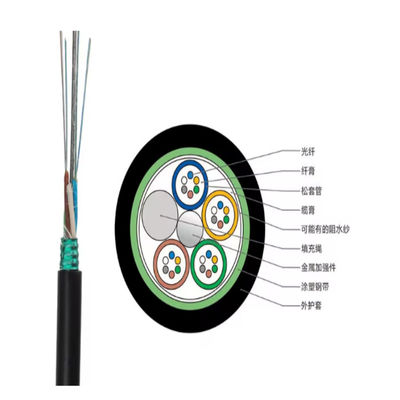

GYTA fiber optic cable uses a stranded loose tube structure with a central steel strength member. Aluminum tape armor and a PE outer sheath provide strong moisture protection and mechanical strength for reliable outdoor communication networks.



Key Features

  • Aluminum tape armor for moisture resistance
  • High tensile strength steel central member
  • Gel filled loose tube for fiber protection
  • Durable PE outer jacket
  • Stable long distance transmission

Applications

  • Aerial fiber optic installation
  • Underground duct networks
  • Telecom backbone networks
  • Metropolitan area networks
  • CATV and broadband systems



Specification:

item value
Model Number GYTA
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Loose tube material PBT
Central strength member steel wire
Armoured Al tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Aluminum/Steel Tape armor
Color Black or as your need
Package Fumigation free wooden drum
Installation aerial, in duct
Certification CE/ROHS/ISO9001 /ANATEL
OEM Available


Structure and Technical Specifications:

Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300



GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom 0

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom 1

WHY CHOOSE US:

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom 2



Certification:

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct Outdoor Long Distance Telecom 3

FAQ



1. What is GYTA fiber optic cable used for?
It is mainly used for aerial and duct installations in telecom and broadband networks.



2. What fiber types are available?
GYTA cable supports single mode and multimode fibers such as G652D and OM series.



3. What protection does the aluminum tape provide?
The aluminum tape improves moisture resistance and protects the cable from corrosion.



4. Is GYTA cable suitable for outdoor environments?
Yes, the PE outer sheath provides strong UV and weather resistance for outdoor use.



5. What core counts are available?
Common options include 2 to 144 cores depending on network requirements.
