Thuis /Producten/Openluchtvezel Optische Kabel/Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable

Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable

1 km
MOQ
Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Vezeltelling: 4-144 kernen
Vezeltype: Enkele modus/multi -modus
Jasje: PE/PVC/LSZH/HDPE/MDPE
Kleur: Zwarte of sinaasappel of Aangepast
Productnaam: Lucht-opgeblazen Micro- Kabel
Lengte: 2 km of aangepaste lengte
Installatie: Leggen van lucht- of kanaalpijpen
Aantal geleiders: ≥ 10
Markeren:

96 core stranded fiber optic cable

,

air blown micro duct network cable

,

outdoor G652D high density cable
Basis informatie
Plaats van herkomst: GUANGZHOU, CHINA
Merknaam: JQ/OEM/Customize
Certificering: ISO9001 ROHS CE-EMC FCC SDOC
Modelnummer: GCYFY/GCYFTY
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Houten trommel
Levertijd: 5-8 werkdagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 30km per dag
Productomschrijving

Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable

Product Features

  • Air-blown installation for fast and cost-effective deployment

  • Stranded loose tube structure for strong fiber protection

  • Non-metallic design, lightweight and corrosion resistant

  • Compact size for efficient duct space utilization

  • Supports easy network upgrade and expansion

Applications

  • FTTH feeder and drop cable connections

  • Metropolitan and backbone fiber networks

  • Micro duct and access network installations

  • Telecom, broadband, and smart city projects

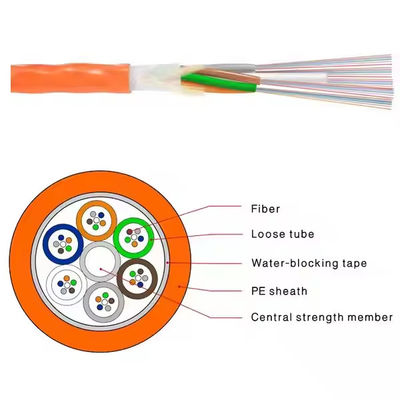

Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color

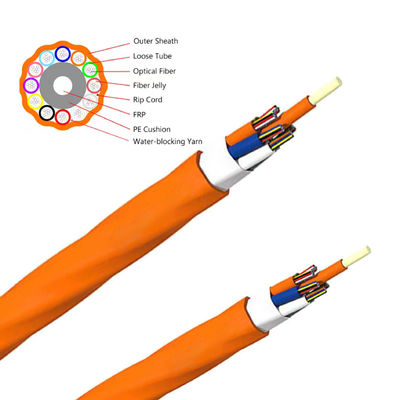

Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable 1


Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable 2


Cable Parameters





Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38





Environmental Characteristics

Working temperature -35oC ~ +70oC
Storage and transportation temperature -35oC~ +70oC
Installation temperature -15oC~ +60oC



FAQ

Q1: What installation method is used for GCYFY cable?
A: It is designed for air-blown installation in micro ducts.



Q2: Is the cable suitable for FTTH networks?
A: Yes, it is widely used as feeder and drop cable in FTTH applications.



Q3: Does the cable contain metal components?
A: No, it adopts a non-metallic structure, providing excellent corrosion resistance and EMI protection.



Q4: Can the cable support future network expansion?
A: Yes, its compact design allows additional cables to be installed in existing ducts.



Q5: What network types is this cable suitable for?
A: It is suitable for backbone networks, metropolitan area networks, and access networks.
